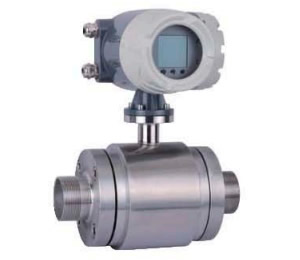

Model：KF700(VA) thread screw type KF700(JA) clamp type Electromagnetic flowmeter is - kind of volume flow measurement instruments in the measurement process, it is not the temperature of the measured medium. Viscosity, density, and conductivity (in a certain |
||||
|
|||||
| Specifications: Diameter: DN10mm-DN150 Electrode: 316L,Hb,Hc,Ti,Ta,Pt Liner: PTFE,PFA,F46 Medium:conductivity liquids Medium conductivity :≥5μ s/cm Accuracy: ±0.5%RS- ±1.0%RS Velocity of flow：0.1m/s- 10m/s Working temperature:-25°C~150°C (base on material) Working pressure:0.6MPa-1.6MPa(base on diameter) Output signal:4-20mA/pulse/frequency Power supply:220VAC/24VDC,battery Installation type: Compact, remote Communication:RS485 or Hart protocol is optional If you want to know more product information, please click here[  KF700VA.pdf] |
|||||
|
|||||
