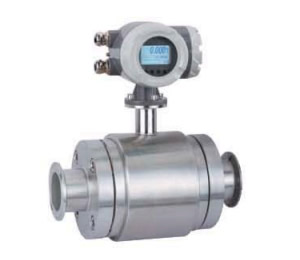

Model：KF700(KA)tri-clamp type Diameter: DN25mm-DN100；Electrode: 316L,Hb,Hc,Ti,Ta,Pt；Liner: PTFE,PFA,F46；Medium:conductivity liquids |
||||
|
|||||
| Specifications: Diameter: DN25mm-DN100 Electrode: 316L,Hb,Hc,Ti,Ta,Pt Liner: PTFE,PFA,F46 Medium:conductivity liquids Medium conductivity :≥5μ s/cm Accuracy: ±0.5%RS- ±1.0%RS Velocity of flow：0.1m/s- 10m/s Working temperature:-25°C~150°C(base on material) Working pressure:0.6MPa-1.6MPa(base on diameter) Output signal:4-20mA/pulse/frequency Power supply:220VAC/24VDC,battery Installation type: Compact, remote Protection class:IP65,IP67,IP68 Communication:RS485 or HART protocol is optional If you want to know more product information, please click here[  KF700KA.pdf] |
|||||
|
|||||
