DN                                       DN2mm~DN25mm
Electrode                            316L, Hc, Ti
Medium                               conductivity medium
Medium conductivity            ≥5μs/cm, softened water 20μs/cm
Accuracy                              ±1.0%RS
velocity of flow                   0.3m/s -10m/s
Working temperature         -10℃~+120℃
Working pressure             0.6MPa~1.6MPa
Protection class                IP65
Output signal                    pulse/frequency
Power supply                    24VDC
Installation                       Compact,Remote

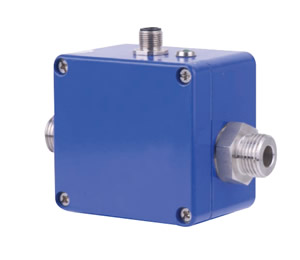

Magnetic Inductive Flow Sensor

The advantages of the magnetic inductive flow meter are mighty impressive!

• No moving parts
• No mechanical wear
• Free pipe cross section
• No additional pressure drop
• Maintenance-free
• Can be used in both flow directions
• Quick response (< 500 ms)
• Minor requirements to the inlet pipe

  Accuracy
• +/-2 % of reading
