Model：KP660 intelligent level transmitter |
||||
|
|||||

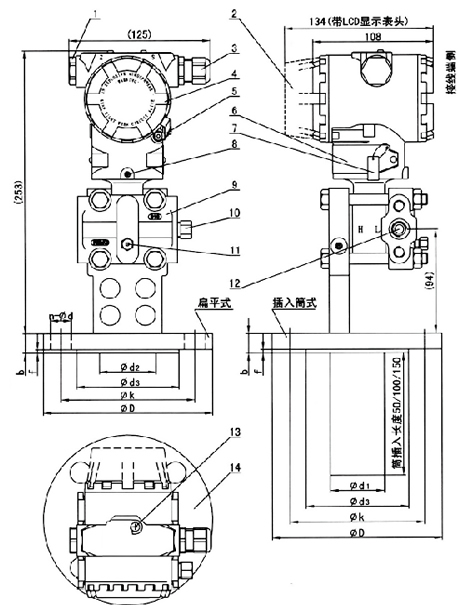

| Technical parameters 1. Electrical sealed bulkhead 2. Electronic components side table cover 3. Electrical Interface: M20x1.5 cable sealing head 4. terminal table cover 5. Table cover securely fastened buckle (explosion) 6. nameplate 7. hanging tag plate (optional) 8. Place the electronics housing screws 9. Process Flange 10. internal thread for installation: M10 / M12 11. Process connection: NPT1 / 4 internal thread, flange interface complies with DIN19213 12. Process connection bulkhead or relief valve (optional) 13. Side discharge screw (optional) 14. situ button  |
|||||
|
|||||
